Korg - TR rack (Trinity)
Technical specifications Company: Korg Model: TR-Rack Dates: 1997 Synthesis technology: PCM (ACCESS, advanced control combined synthesis system) Memory: 24Mb + 8Mb (“including the best sounds from the TRINITY's four wave expansions libraries”) PCM ROM, recorded and playback at 48kHz sampling rate Polyphony: 32 voices Multitimbric: 8 timbres (parts) No of programs: 512 (4x 128) No of combinations: 512 (4x 128) Effect section: Program for single/double oscillator: 3 inserts + 2 master effects. Program for drum oscillator: 4 inserts + 2 master effects. Combination: 8 inserts + 2 master effects. Multi: 8 inserts + 2 master effects. No of effects: 100 insert effects [“IFX”], 14 master effects [“MFX”] Connectors: 1/L(Mono), 2/R, 3, 4 output, Phones, Foot switch, Foot pedal PC interface: TO HOST Midi: In, Out, Thru OS: latest version 1.4 Display: 2 x 20‑character backlit LCD Power consumption: 18 W Dimensions (W x D x H): 482 mm x 264 mm x 45 mm OPTIONS ADAT format compatible digital output: DI-TRI Digital I/F board TO HOST cable: for PC AG-001 / for Apple Macintosh 002B
Device comments

Post comment
Upload SysEx file Upload Image Upload PDF or ZIP Edit Description
Me and the TR rack (Trinity)
PDF File Id: 2174 Uploaded by NGHF


File name: Korg TR-Rack_voice name list.pdf Size: 2.500,0 KB
Description: Korg TR-R voice name list
Date upload: 13 February, 2024
Downloads: 0

Comments:

Post comment
 Download
PDF File Id: 2173 Uploaded by NGHF


File name: Korg TR-Rack vs Trinity_+39 Multisamples_+200 Drum samples.pdf Size: 243,0 KB
Description: Comparing Korg TR-Rack vs. Korg Trinity Keyboard synthesiser
Date upload: 13 February, 2024
Downloads: 0

Comments:

Post comment
 Download
PDF File Id: 2172 Uploaded by NGHF


File name: Korg TR-Rack - Notes.pdf Size: 547,0 KB
Description: Korg TR-Rack - Cheat Sheet and Notes_Aug23
Date upload: 13 February, 2024
Downloads: 0

Comments:

Post comment
 Download
Image Id: 2171 Uploaded by NGHF


File name: Korg TR Rack_frt_1998.jpg Size: 84,0 KB

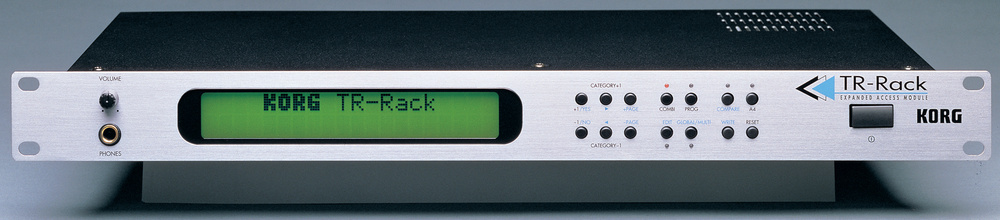

Description: TRR front pic
Date upload: 13 February, 2024
Downloads: 0

Comments:

Post comment
 Download
PDF File Id: 2170 Uploaded by NGHF


File name: Korg products_bank change messages.pdf Size: 60,0 KB
Description: Bank Change Messages For Korg Products
Date upload: 13 February, 2024
Downloads: 0

Comments:

Post comment
 Download
